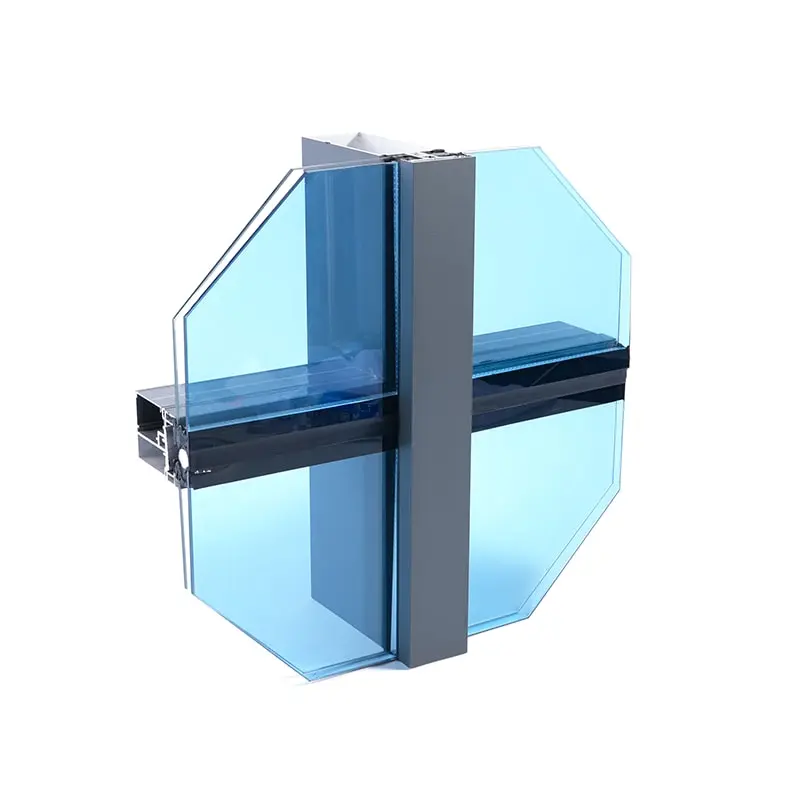

China Suppliers Factory: Aluminum Profile for Curtain Wall with Invisible Horizontal Frame Design

,

Minimalist Horizontal Expression for Modern Architecture

,

This innovative system showcases clean, continuous horizontal lines while discreetly concealing structural supports. Our horizontally oriented aluminum profiles boast ultra-narrow face widths, seamlessly integrated to create a streamlined visual effect that enhances horizontal articulation in building designs. As a leading supplier and factory in China, we provide solutions ideal for projects that focus on horizontal layering, terraced effects, or dynamic ribbon-like facades.

,

The concealed horizontal lines lend a sense of elongation and fluidity, embodying a modern and sleek architectural language. Perfect for architects and designers seeking to elevate their projects, our products set the standard for contemporary design in China.

,

Product Description

Specifications
Item Horizontal Frameless Curtain Wall Aluminum Profiles
Material 6063 / 6061 / 6060
Temper T5 / T6
Thickness 0.8 - 5.0 mm
Length 6m (customizable)
Surface Treatment Mill finish / Power coating / Anodizing / Electrophoresis / Fluorocarbon coating / Wood grain, etc.
Color According to customer requirements (customizable)
Service Support Drilling / Milling / Cutting / Welding / Bending / Assembling / CNC
Packing Details Inside: packed with protective film to protect each piece
Outside: wrap to be bundles by shrink plastic bag
Delivery Time Die developing and sample testing: 7 - 10 days
Mass production completed: 15 - 30 days
MOQ 500 kg

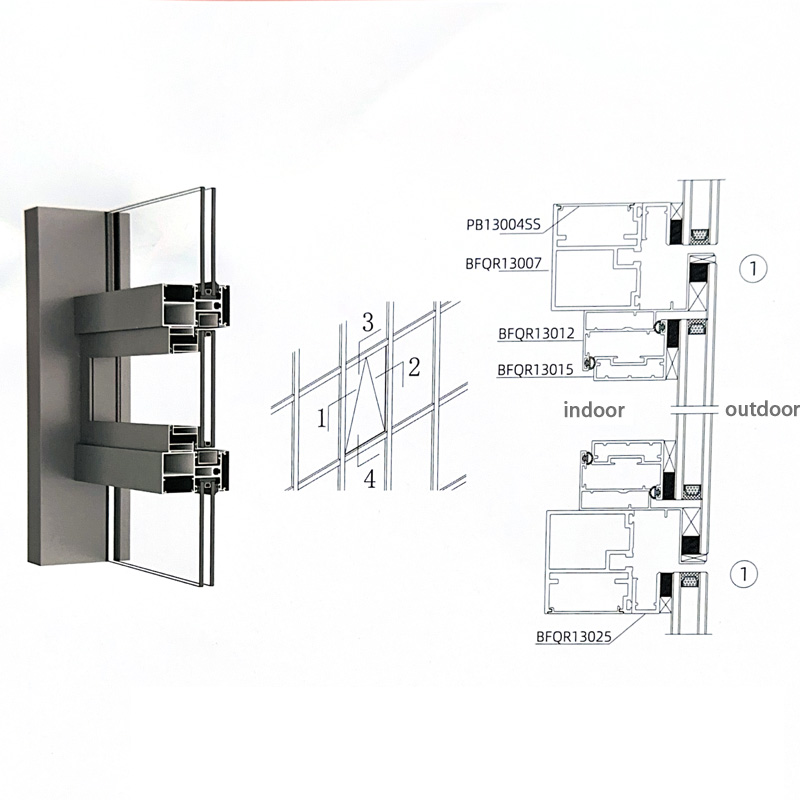

Horizontal Concealment and Vertical Clarity

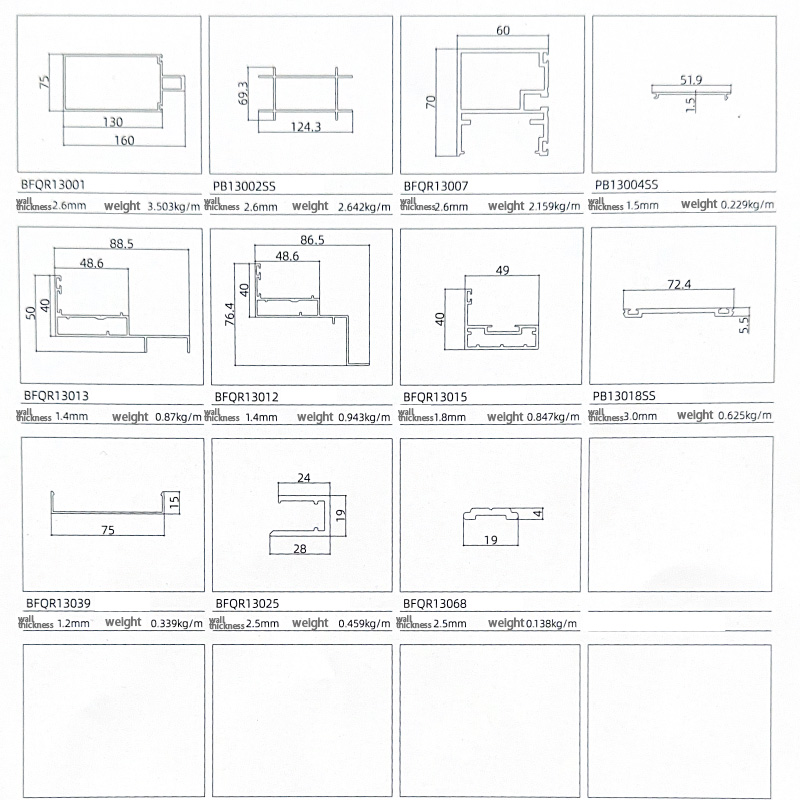

Horizontal Concealment Vertical Clarity 2
Surface Treatment
Surface Treatment Options
Product Application

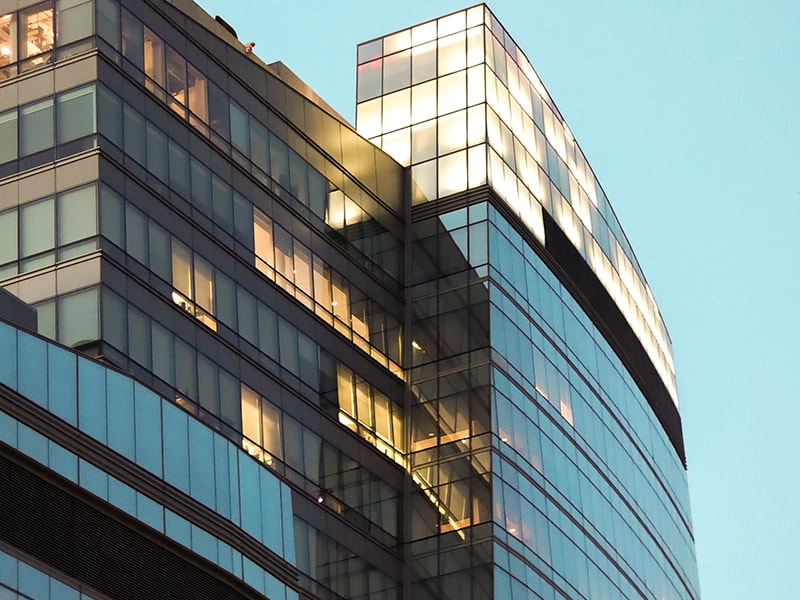

Aluminum Profile for Modern Glass Curtain Wall Facades detail 1

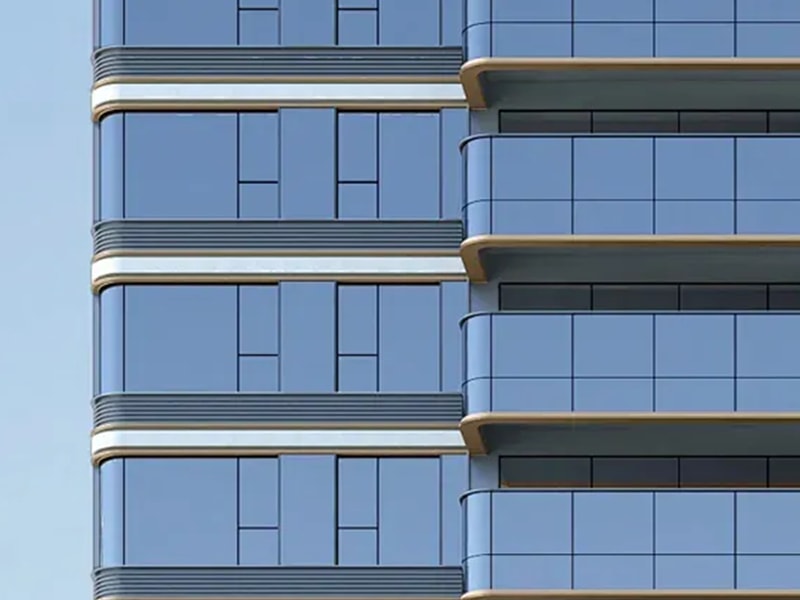

Aluminum Profile for Modern Glass Curtain Wall Facades detail 2

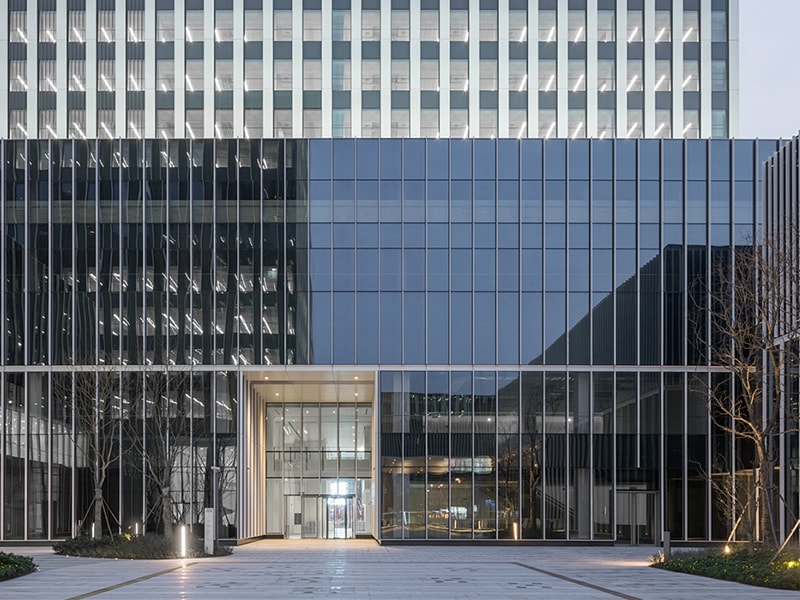

Aluminum Profile for Modern Glass Curtain Wall Facades detail 3

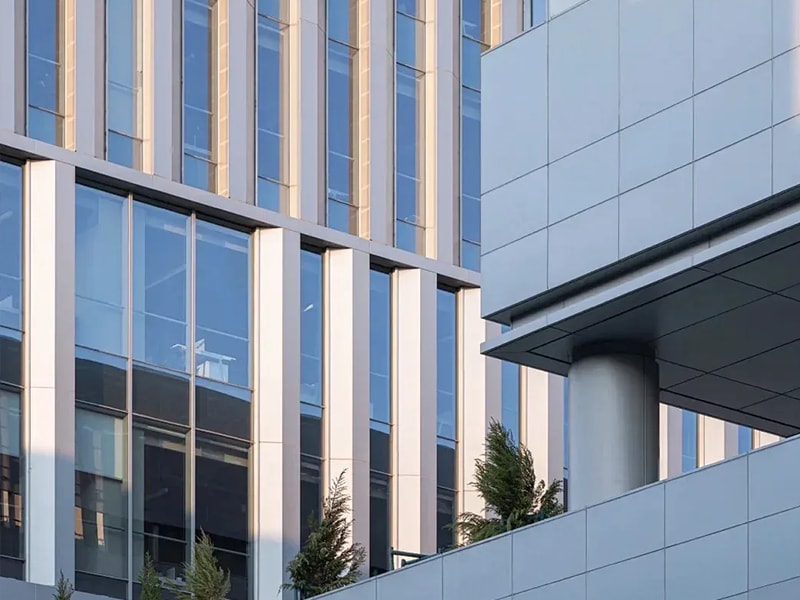

Aluminum Profile for Modern Glass Curtain Wall Facades detail 4
Discover the Modern Facade Solution: Our Horizontal Hidden Frame Curtain Wall System

This precision-engineered aluminum profile system creates seamless glass facades with minimal visible framing. The innovative "cross-shaped" structural design provides exceptional load-bearing capacity while maintaining clean sightlines, maximizing natural light penetration for commercial buildings and high-rise developments. Ideal for office towers, luxury hotels, and institutional buildings seeking contemporary aesthetics with superior weather performance and thermal efficiency.

⭐ Key System
Unitized (or Modular) System

The modern, high-performance standard for tall buildings. Complete prefabricated units - each comprising a full aluminum frame, insulating glass, and spandrel panels - are manufactured and sealed in a controlled factory environment. These large units are then shipped and simply hung from the building's structure, enabling rapid, weather-independent installation with superior quality control and consistent performance.

Customized Thermal Break Aluminum Window Profile detail
Frequently Asked Questions
Q What aluminum alloy grades are used for the horizontal frameless curtain wall profiles?
Our curtain wall aluminum profiles are manufactured using high-quality alloy grades 6063, 6061, and 6060, available in T5 and T6 temper. These grades offer an excellent balance of strength, corrosion resistance, and extrudability, making them ideal for architectural facade applications.
Q Can the profiles be customized in terms of color and surface finish?
Yes. We offer a wide range of surface treatment options including mill finish, powder coating, anodizing, electrophoresis, fluorocarbon coating, and wood grain effect. Colors can be fully customized according to your project requirements or RAL color standards.
Q What is the minimum order quantity (MOQ) and standard profile length?
The minimum order quantity is 500 kg. Standard profile length is 6 meters, though custom lengths are available upon request to meet specific project dimensions.
Q What processing services do you provide for the aluminum profiles?
We provide comprehensive value-added processing services including drilling, milling, cutting, welding, bending, assembling, and CNC machining. This allows us to deliver ready-to-install components tailored precisely to your architectural specifications.
Q What is the typical lead time from order placement to delivery?
For new die development and sample testing, the lead time is approximately 7 - 10 days. Mass production is typically completed within 15 - 30 days depending on order volume and complexity.
Q What types of buildings are best suited for this horizontal hidden frame curtain wall system?
This system is ideal for a wide range of commercial and institutional projects, including office towers, luxury hotels, high-rise residential buildings, shopping centers, and public facilities. It is especially well-suited where contemporary aesthetics, maximum natural light, thermal efficiency, and superior weather resistance are key design priorities.
