Wholesale Customized Aluminum Profiles for Curtain Walls - Suppliers and Factory in China Manufacturer, Supplier

Enhance Aesthetic Flexibility with Custom Frame Designs
Our aluminum profiles, crafted in China, provide the opportunity for customization in width, depth, color, and finish, ensuring they align perfectly with your building's design aspirations. As leading suppliers and factory manufacturers, we offer both uniform and varied grid patterns, allowing you to create a distinct rhythm and scale that elevates your architectural vision.

Send Inquiry

Product Description

Specifications

Item	Aluminum curtain wall profile
Material	6063 / 6061 / 6060
Temper	T5/T6
Thickness	0.8–5.0mm
Length	6m (customizable)
Surface Treatment	Mill finish / Power coating / Anodizing / Electrophoresis / Fluorocarbon coating / Wood grain, etc.
Color	According to customer requirements (customizable)
Service Support	Drilling / Milling / Cutting / Welding / Bending / Assembling / CNC
Packing Details	Inside: packed with protective film to protect each piece
Packing Details	Outside: wrap to be bundles by shrink plastic bag
Delivery Time	Die developing and sample testing: 7–10 days
Delivery Time	Mass production completed: 15–30 days
MOQ	500kg

Surface Treatment

Product Application

🏗️

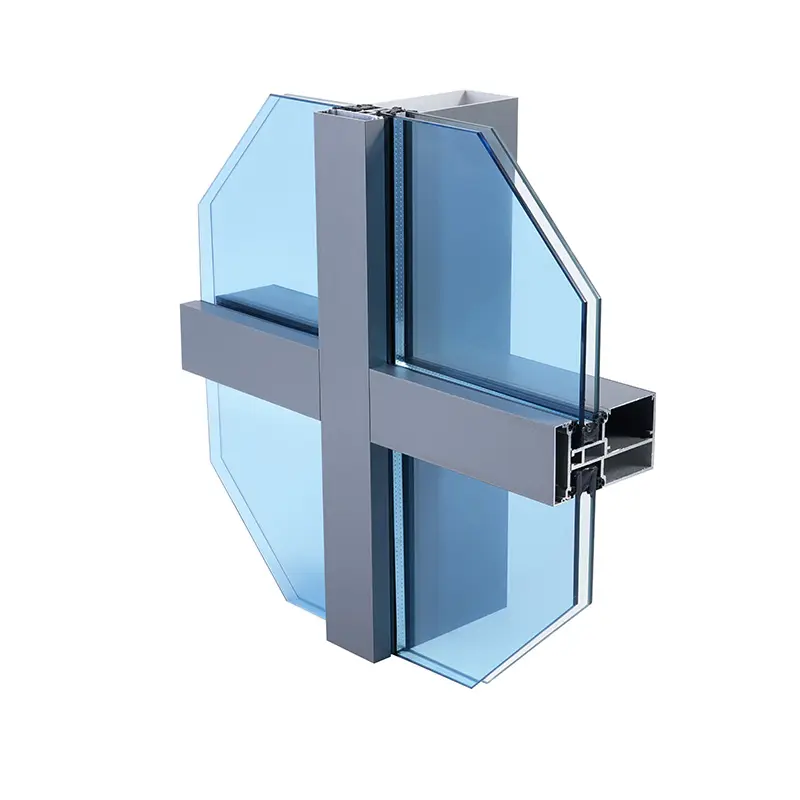

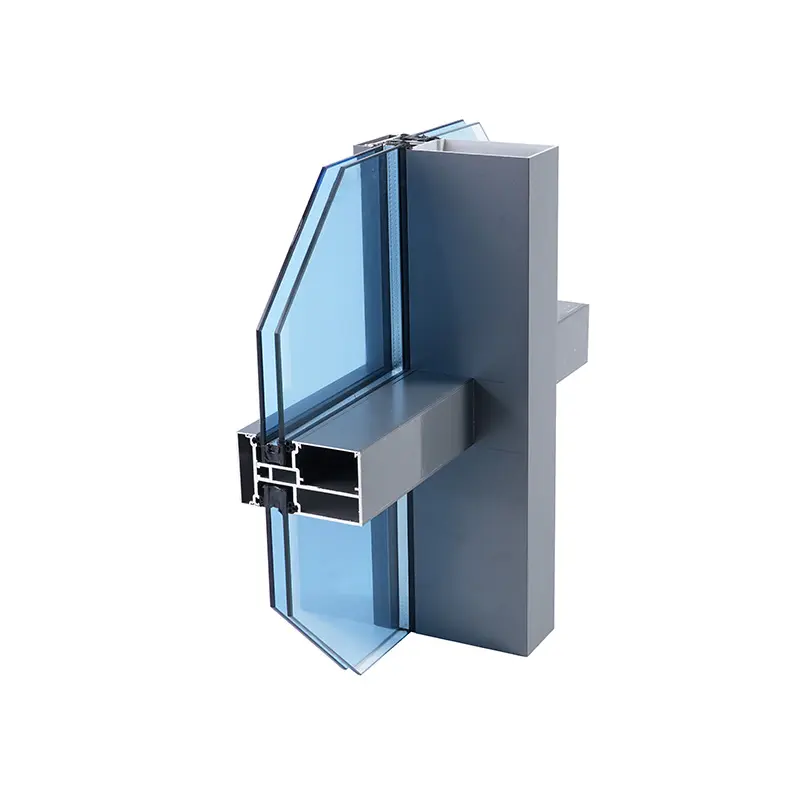

Primary Structural Framework Includes mullions (vertical), transoms (horizontal), and pressure plates that form the grid system to hold and seal glass panels.

🌡️

Thermal & Performance Engineering Available in thermally broken profiles featuring a polyamide barrier that significantly reduces thermal bridging, enhancing the building's energy efficiency (U-value) and preventing condensation.

💧

Precision for Water & Air Management Integrates sophisticated drainage channels, gasket grooves, and pressure equalization chambers within the profile design to ensure superior weather resistance (water, air infiltration).

✨

Aesthetic Flexibility & Strength Allows for slim sightlines and maximized glass area. Made from high-grade alloys, offering an optimal strength-to-weight ratio. Available in a full range of architectural finishes.

❓ Frequently Asked Questions

Q What aluminum alloys are used in your curtain wall profiles?

Our curtain wall profiles are manufactured using high-grade aluminum alloys 6063, 6061, and 6060, with temper options of T5 or T6. These alloys provide an excellent strength-to-weight ratio, corrosion resistance, and superior surface finish quality for architectural applications.

Q What surface treatment options are available for the curtain wall profiles?

We offer a comprehensive range of surface treatments including Mill Finish, Powder Coating, Anodizing, Electrophoresis, Fluorocarbon (PVDF) Coating, and Wood Grain finishes. Colors can be fully customized according to your project requirements.

Q Are thermally broken profiles available, and what are their benefits?

Yes, we offer thermally broken curtain wall profiles featuring a polyamide (PA66) barrier insert. This design significantly reduces thermal bridging between the interior and exterior aluminum sections, improving the building's energy efficiency (U-value), reducing heating/cooling costs, and preventing condensation on interior surfaces.

Q What is the minimum order quantity (MOQ) and what are the lead times?

The minimum order quantity is 500kg. For lead times: die development and sample testing takes approximately 7–10 days, while mass production is completed within 15–30 days depending on order volume and specifications.

Q Can the profiles be customized in terms of dimensions and length?

Absolutely. Our standard profile length is 6 meters, but custom lengths are available. Thickness ranges from 0.8mm to 5.0mm. We also provide full fabrication services including Drilling, Milling, Cutting, Welding, Bending, Assembling, and CNC machining to meet your exact project specifications.

Q How are the curtain wall profiles packaged for shipment?

Each profile is individually wrapped with a protective film to prevent surface scratches during transit. Profiles are then bundled together and wrapped with shrink plastic bags to form secure, compact bundles for safe international shipping and handling on-site.
