| Item | Sliding door aluminum profile |
| Material | 6063 / 6061 / 6060 |
| Temper | T5 / T6 |
| Thickness | 0.8 - 5.0 mm |
| Length | 6m (customizable) |
| Surface Treatment | Mill finish / Power coating / Anodizing / Electrophoresis / Fluorocarbon coating / Wood grain, etc. |
| Color | According to customer requirements (customizable) |
| Service Support | Drilling / Milling / Cutting / Welding / Bending / Assembling / CNC |
| Packing Details | Inside: packed with protective film to protect each piece |
| Outside: wrap to be bundles by shrink plastic bag | |
| Delivery Time | Die developing and sample testing: 7-10 days |
| Mass production completed: 15-30 days | |
| MOQ | 500 kg |

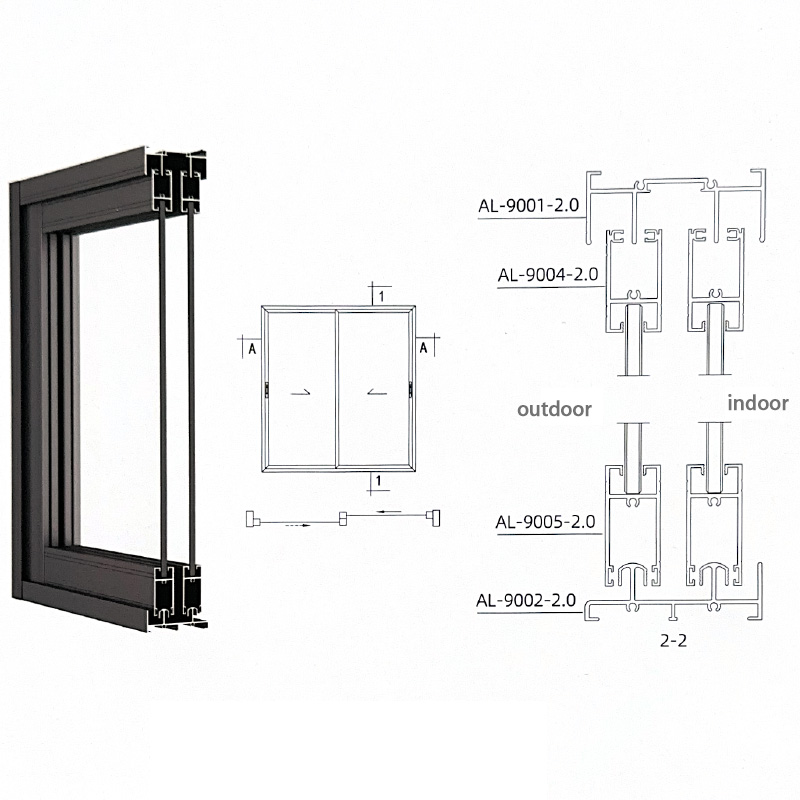

Heavy-Duty Tracks: Features precision-extruded bottom tracks with multiple channels for smooth rolling, effective water drainage, and wind deflection. The head track is designed for secure top guidance and sealing.
Roller System Integration: The sash profile (movable panel) incorporates dedicated internal chambers for the seamless integration of high-quality nylon or stainless steel rollers/bearings. This allows for quiet, single-finger operation, even for large, heavy glazed panels.
Sash Profile (Movable Panel): Reinforced design to handle the weight of insulated glass units (IGUs) without deflection. Includes integrated glazing channels and hardware mounting points for locks and handles.
Frame Profile (Fixed Frame): Robust construction with multiple internal chambers for structural strength. Includes dedicated weather-stripping grooves and a wrap-around design to fully embrace the sash, providing a clean aesthetic and enhanced protection.
